Carlton Prime
Presenting Carlton Prime, the ultimate in simplicity and tranquility. This line of restroom cubicles is modern and simple to install and maintain.
This model reflects aesthetics in its construction, with polyamide hardware and an extruded powder-coated aluminum top rail for a sleek appearance. Its intermediate panel is made up of a single, unbroken piece without any joints. Every pilaster and door has chamfered edges and is 12 mm thick. If you’re looking for endurance and simplicity, Prime is the best option.
Hardware & Accessories

Powder Coated Aluminum U-Channel

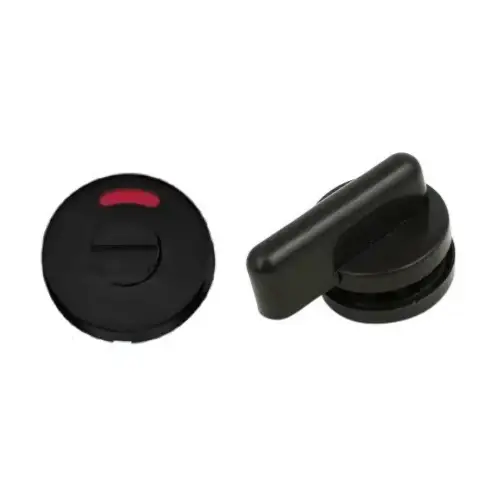

Nylon Polyamide Thumb - Turn With Indicator

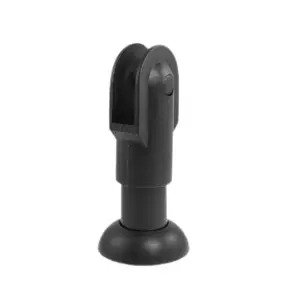

Nylon Polyamide Coated Adjustable Foot

Powder Coated Aluminum Top Rail

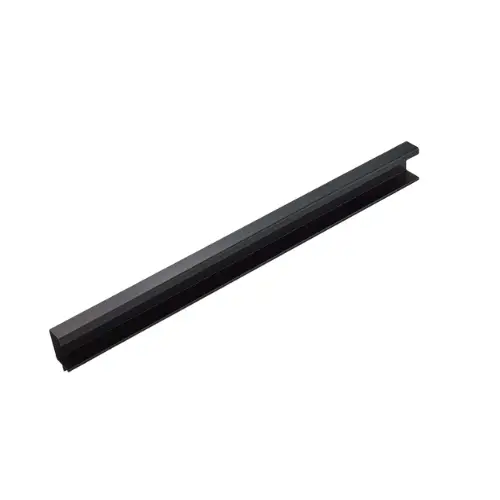

Powder Coated Aluminum Door Stopper Channel

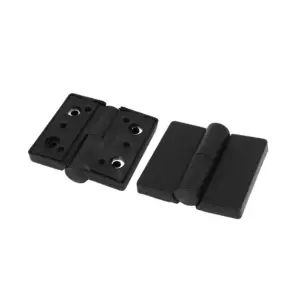

Nylon Coated Gravity Hinge

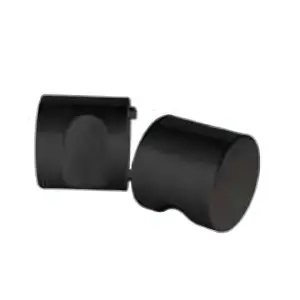

Nylon Polyamide Door Knob

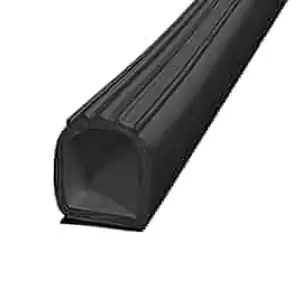

Noise Deafening Rubber

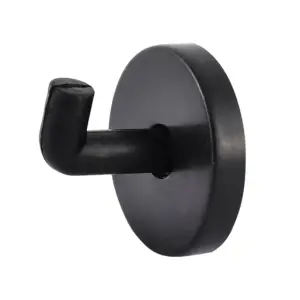

Nylon Polyamide Coat Hook

Stainless Steel Screws & Wall Plug

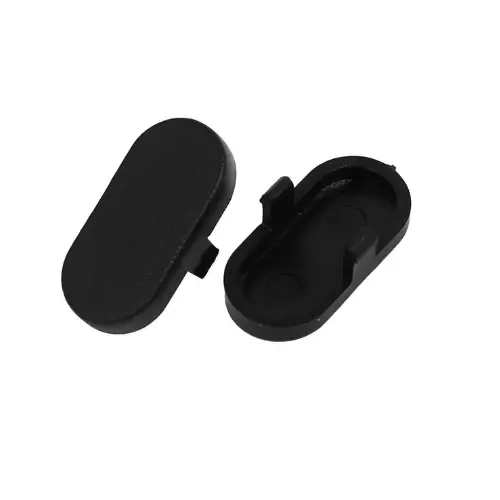

Polyamide Top Rail End Cap
Dimensions
| Specification | General (mm) | Physically Challenged (mm) |
|---|---|---|
| Width of Cubicle | 1000 | 1500 |
| Depth of Cubicle | 1500 | 1750 |
| Width of Door | 600 | 900 |
| Height of Door | 1785 | 1785 |
| Ground Clearance | 150 | 150 |
| Height of Entire Cubicle | 2005 | 2005 |
